Our range of ultra soft fabric wrapped sponge EMI shielding profiles utilizes a highly conductive and durable impregnated fabric formed around a sponge or foam core to create a very versatile low compression gasket.
STANDARD PRODUCTS

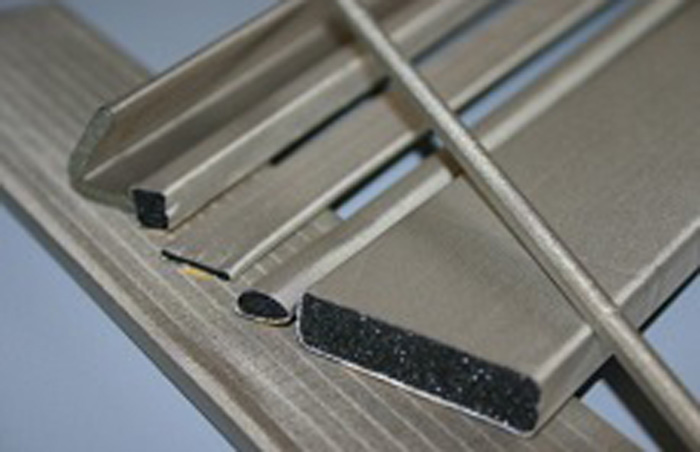

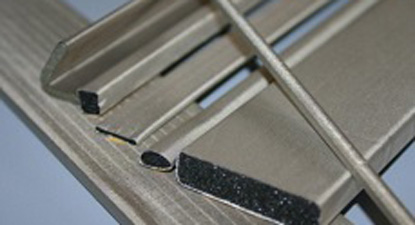

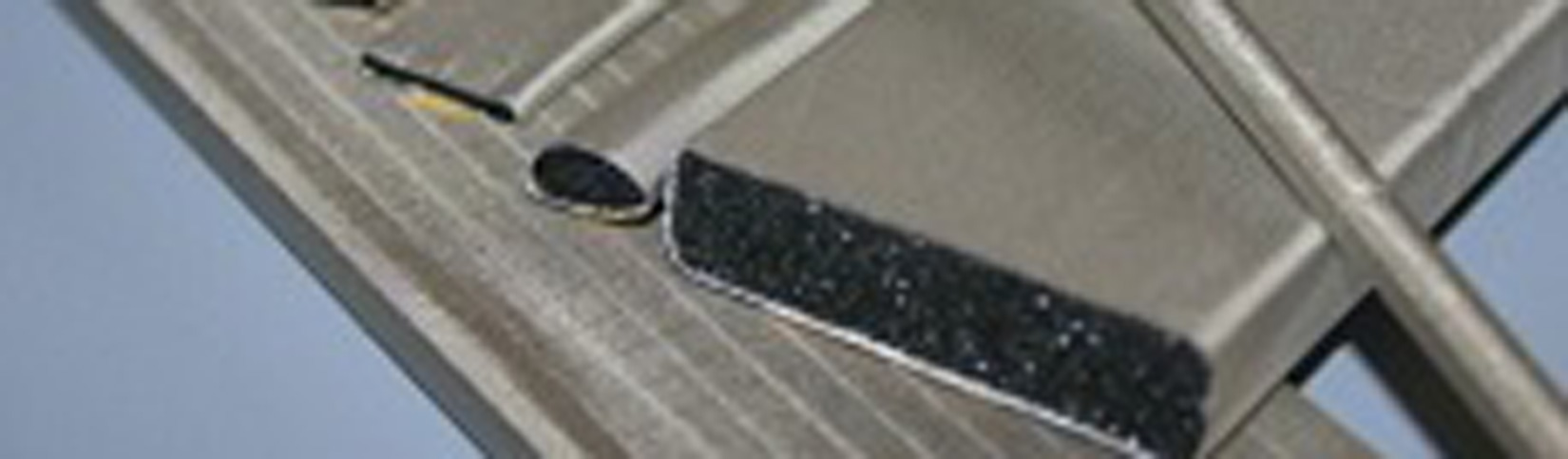

Conductive fabric wrapped sponge
Our range of ultra soft fabric wrapped sponge EMI shielding profiles utilizes a highly conductive and durable impregnated fabric formed around a sponge or foam core to create a very versatile low compression gasket.
Conductive fabric wrapped profiles are particularly suitable for fixed-gasket applications within the computer or telecommunications manufacturing sectors as they are easily trimmed to size, are self-terminating and provide excellent dust and moisture protection coupled with a high degree of EMI shielding.
Our conductive fabric wrapped sponge profiles are available in strip form or as ready to fit preformed or jointed gaskets. The standard materials have a self-adhesive backing and can be quickly & easily fixed in position. Corner joints can be mitred or butt-jointed depending on the cross-section with no need to bond or ‘antifray’ seal the cut ends. All our conductive fabric is ‘Rip-Stop’ unless otherwise specified.
Our conductive fabric wrapped sponge profiles are available in strip form or as ready to fit preformed or jointed gaskets. The standard materials have a self-adhesive backing and can be quickly & easily fixed in position. Corner joints can be mitred or butt-jointed depending on the cross-section with no need to bond or ‘antifray’ seal the cut ends. All our conductive fabric is ‘Rip-Stop’ unless otherwise specified.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
Detailed information
Specifications
Open and closed-cell foam and sponge rubber cores are available including polyurethane and neoprene. The fabric can also be applied around rubber tube profiles. A surface finish of nickel/copper is available.
Performance
| 30MHz | 90 |
| 100MHz | >100 |
| 500MHz | >100 |
| 1GHz | >100 |
| 10GHz | 110 |
Tolerances
Tolerances
up to 16mm ±0.8mm
up to 48mm ±1.5mm
up to 100mm ±2.0mm
Properties
- Surface resistivity: Nickel/Copper < 0.05 ohms/square
- Abrasion resistance: Excellent
- Compression set: < 10% (typical)
- Temperature range: -40 to +70°C (typical)
up to 16mm ±0.8mm
up to 48mm ±1.5mm
up to 100mm ±2.0mm
Properties
- Surface resistivity: Nickel/Copper < 0.05 ohms/square
- Abrasion resistance: Excellent
- Compression set: < 10% (typical)
- Temperature range: -40 to +70°C (typical)
How to order
Specify: Series-Filler (core)-Shape-Size-Length-Colour-Finish
For finished gaskets please provide a detailed drawing.
| Shielding Series | Fabric | Filler (core) | Shape | Size | Colour | Finish |
| MW = Metweave Conductive Fabric | Nickel / Copper | PU = Polyurethane | 70 = Rectangular | xxxx-xxxx | Silver | N/A = Non Adhesive |
| EP = EPDM Sponge | 11 = D-Section | S/A = Self Adhesive | ||||
| 88 = C-Section | ||||||
| 60 = Round | ||||||
| 80 = P-Section | ||||||
| 90 = Double D | ||||||
| 77 = Knife-Edge | ||||||
| 66 = L-Section |
Example / Notes
Notes:
Standard length is 2.0 meters.
Examples:
MW-PU-11-0050-0050-S-S/A is Conductive fabric with polyurethane foam core, 5 x 5 mm D-Section with self-adhesive.
MW-NS-70-0100-0030-S-N/A is Conductive fabric with Neoprene Sponge core, 10 x 3 mm rectangular section without adhesive.
Standard length is 2.0 meters.
Examples:
MW-PU-11-0050-0050-S-S/A is Conductive fabric with polyurethane foam core, 5 x 5 mm D-Section with self-adhesive.
MW-NS-70-0100-0030-S-N/A is Conductive fabric with Neoprene Sponge core, 10 x 3 mm rectangular section without adhesive.
Our standard sizes
Please note
Note – Minimum order quantities may apply as not all profiles are stock parts – please contact us for more details.
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
How to measure gaskets and o-rings
Gaskets can come in various shapes and sizes. We have put together a guide to help you measure some of the most common shaped gaskets correctly. Please follow the methods to help you successfully measure a gasket.
