Extruded conductive silicones are available as solid or hollow round, solid or hollow ‘D’ shape, ‘U’ channel, rectangular or solid or hollow ‘P’ shape extrusion profiles.
STANDARD PRODUCTS

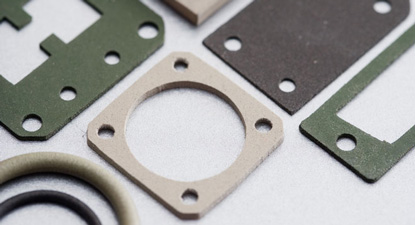

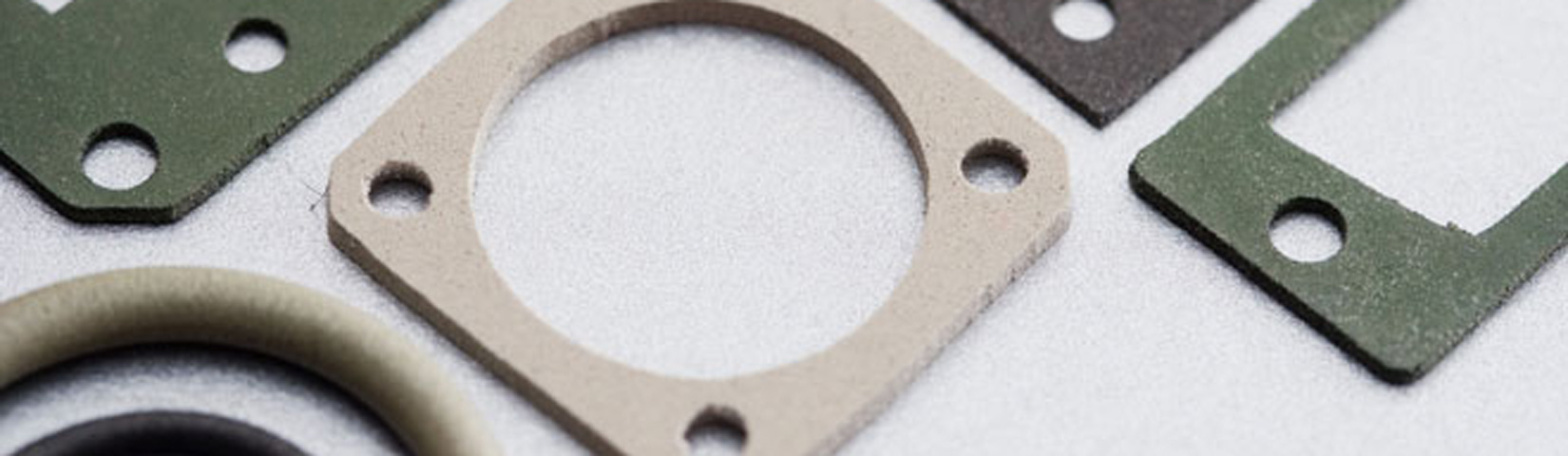

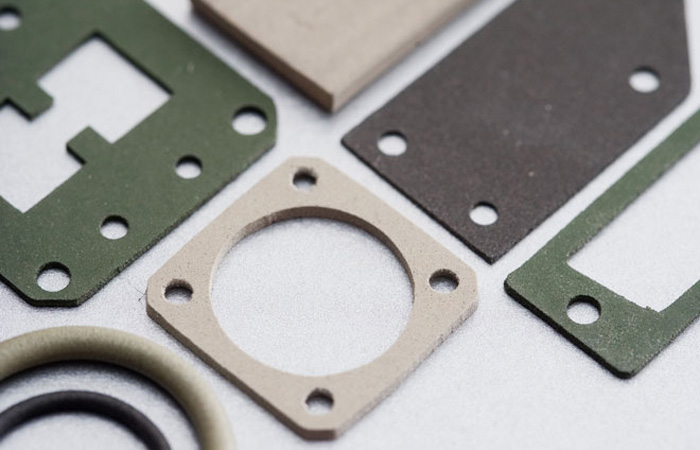

Conductive silicone extrusions
Extruded conductive silicones are available as solid or hollow round, solid or hollow ‘D’ shape, ‘U’ channel, rectangular or solid or hollow ‘P’ shape extrusion profiles. For these conductive particle filled silicone extrusions, being fitted into a correctly dimensioned groove or channel will provide the most effective sealing and emi shielding performance. Fixing these gaskets in place with any form of conductive adhesive is not recommended as this is likely to have an adverse effect on the environmental sealing.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
DETAILED INFORMATION
How to order
Standard sizes can be specified from the table below. Alternatively please provide a drawing of the profile required indicating series and filler.
| Shielding Series | Filler Code | Style / Shape | Size |
| EC = Silicone | Q = Nickel Graphite | 60= Solid Round | xxxx |
| ECF = Fluorosilicone | G = Silver Glass | 61 = Hollow Round | xxxx-xxxx |
| ECR = Flame Retardant* | J = Silver Aluminium | 11 = Solid 'D' | xxxx-xxxx-xxxx |
| H = Silver Copper | 12 = Hollow 'D' | xxxx-xxxx-xxxx-xxxx | |
| S = Silver | 13 = 'U' Channel | xxxx-xxxx-xxxx-xxxx | |
| *Nickel Graphite only | C = Carbon | 70 = Rectangular | xxxx-xxxx |
| 81 = Solid 'P' Section | xxxx-xxxx-xxxx-xxxx | ||
| 82 = Hollow 'P' Section | xxxx-xxxx-xxxx-xxxx |
Examples / Notes
Example:
EC-J-61-0032-0016 is extruded tubular silicone with silver plated aluminium filler of 3.2 mm outer diameter (o.d.) and 1.6 mm inner diameter (i.d.)
Tolerances:
- Up to 2.0mm ± 0.1mm
- 2.0mm to 5.0mm ± 0.15mm
- 5.0mm to 9.0mm ± 0.2mm
EC-J-61-0032-0016 is extruded tubular silicone with silver plated aluminium filler of 3.2 mm outer diameter (o.d.) and 1.6 mm inner diameter (i.d.)
Tolerances:
- Up to 2.0mm ± 0.1mm
- 2.0mm to 5.0mm ± 0.15mm
- 5.0mm to 9.0mm ± 0.2mm
Our standard sizes
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
How to measure gaskets and o-rings
Gaskets can come in various shapes and sizes. We have put together a guide to help you measure some of the most common shaped gaskets correctly. Please follow the methods to help you successfully measure a gasket.
