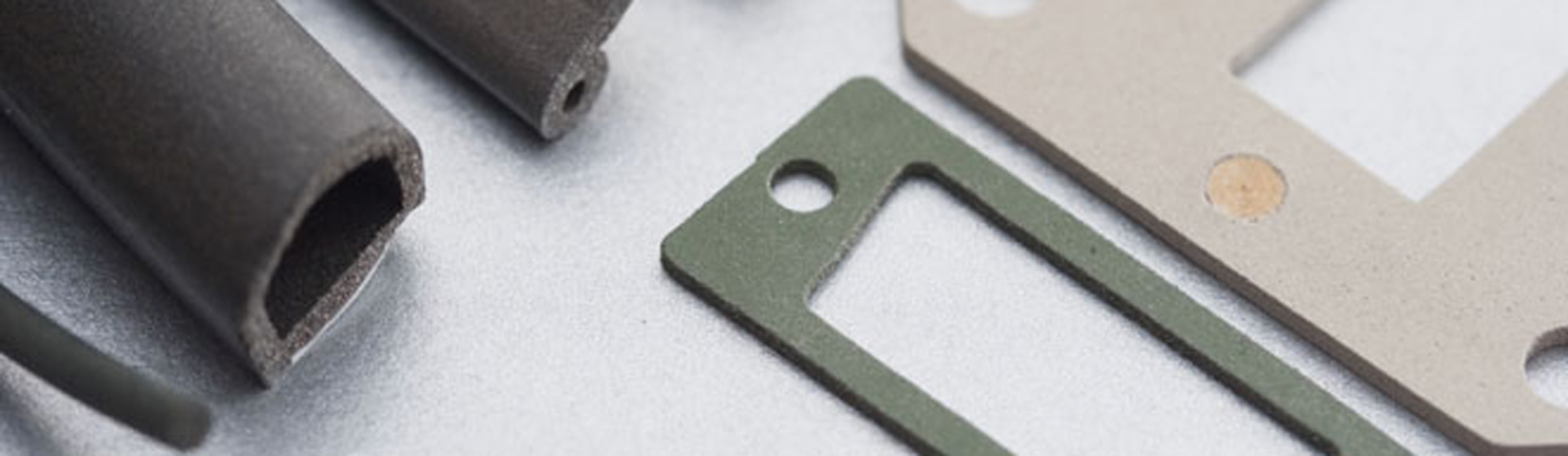

Our conductive silicone gaskets are constructed from silicone containing metal powder fillers which combine to produce high levels of attenuation with excellent environmental shielding and a high level of conductivity.
STANDARD PRODUCTS
Conductive particle filled silicone

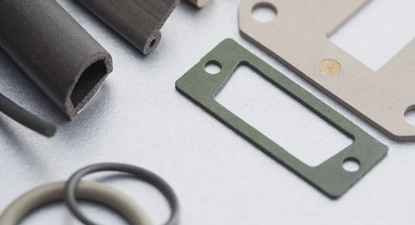

Our conductive silicone gaskets are constructed from silicone containing metal powder fillers which combine to produce high levels of attenuation with excellent environmental shielding and a high level of conductivity. Many types of filler, from nickel to pure silver, are available to suit a wide range of applications. There are also Fluorosilicone variants for use in the presence of hydrocarbon contamination.
Applications
Conductive silicone EMI shielding gaskets and materials were originally developed for high performance shielding mainly for military applications. However, the introduction of lower cost fillers has now made them accessible to the commercial sector. They are used where environmental and EMI shielding is required but space constraints or stringent environmental protection necessitates a small cross section profile, often fitted into a groove or channel.
Conductive silicone is best used where mating surfaces are smooth and well machined. They should be mounted to provide adequate voulme for the material to deflect under pressure and should be compressed by between 8 and 20% of their relaxed height for solid sections and between 20 and 100% of the height of the hollow centre of tubular sections. Moulded ‘O’ rings, gasket profiles and sheet materials all have their own compression characteristics according to how they are mounted and do not comply with the guidelines above.
To discuss your specific application, please contact us.
Conductive silicone is best used where mating surfaces are smooth and well machined. They should be mounted to provide adequate voulme for the material to deflect under pressure and should be compressed by between 8 and 20% of their relaxed height for solid sections and between 20 and 100% of the height of the hollow centre of tubular sections. Moulded ‘O’ rings, gasket profiles and sheet materials all have their own compression characteristics according to how they are mounted and do not comply with the guidelines above.
To discuss your specific application, please contact us.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
Specifications
| Shielding Series | EC-Q | EC-G | EC-J | EC-H | EC-S | EC-C | |
| Filler | Test Method | Nickel Graphite | Silver Glass | Silver Aluminium | Silver Copper | Silver Pure | Carbon |
| Upper Operating Temp oC | +160 | +160 | +160 | +160 | +160 | +160 | |
| Lower Operating Temp oC | ASTM D-1329 | -50 | -50 | -50 | -50 | -50 | -50 |
| Specific Gravity (±5%) | ASTM D-792 | 1.99 | 1.75 | 2.00 | 3.02 | 3.20 | 1.19 |
| Hardness Shore A (±5) | ASTM D-2240 | 60 | 60 | 65 | 60 | 75 | 70 |
| Elongation % (min) | ASTM D-412 | 100 | 80 | 175 | 100 | 100 | 150 |
| Compression Set % | ASTM D-395 | 30 | 30 | 30 | 30 | 30 | 20 |
| Tensile Strenth Mpa (min) | ASTM D-412 | 1.00 | 0.90 | 0.90 | 1.00 | 1.25 | 5.00 |
| Volume Resistivity ohms/cm (max) | 0.1 | 0.005 | 0.008 | 0.008 | 0.002 | 9.00 | |
| EMI Shielding Effectiveness (dB) | MIL-G-83528 MIL285 | ||||||
| 200KHz (H-Field) | 70 | 55 | 70 | 75 | 70 | 30 | |
| 100MHz (E-Field) | 95 | 95 | 110 | 110 | 115 | 65 | |
| 500MHz (E-Field) | 90 | 90 | 105 | 120 | 115 | 60 | |
| 2GHz (Plane Wave) | 90 | 90 | 100 | 120 | 115 | 40 | |
| 10GHz (Plate Weave) | 90 | 90 | 100 | 120 | 115 | 30 |
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
How to measure gaskets and o-rings
Gaskets can come in various shapes and sizes. We have put together a guide to help you measure some of the most common shaped gaskets correctly. Please follow the methods to help you successfully measure a gasket.
