Our range of conductive foil tape offers a cost-effective solution to EMI shielding. Tapes are available in both copper and aluminium with a conductive adhesive.
STANDARD PRODUCTS
Conductive foil tapes
Conductive Foil Tapes

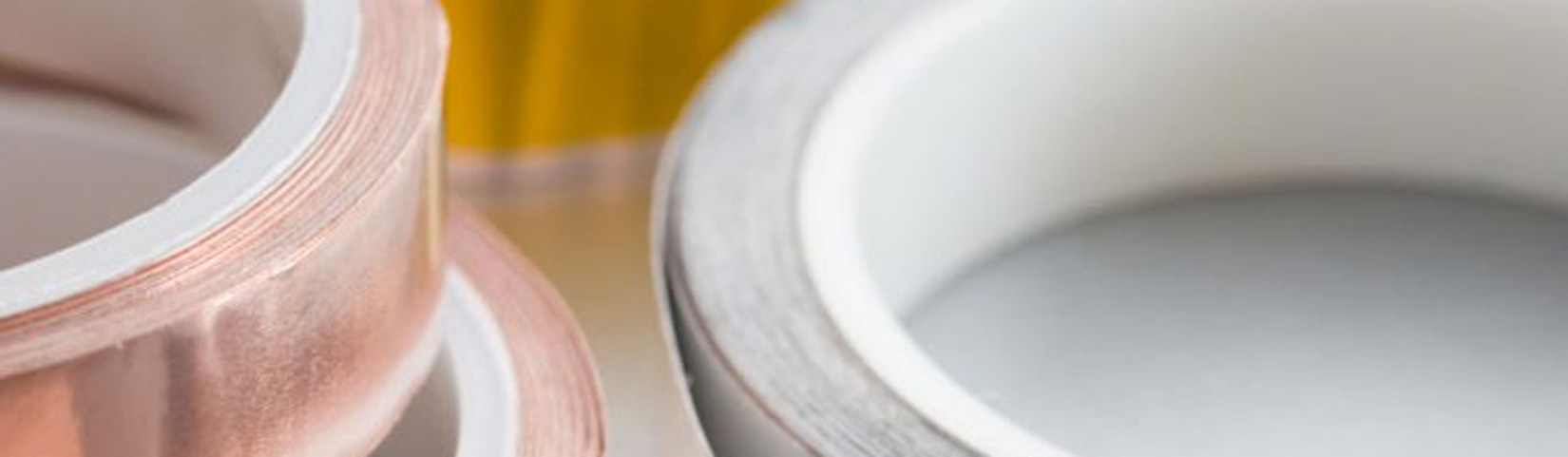

Our range of conductive foil tape offers a cost-effective solution to EMI shielding. Tapes are available in both copper and aluminium with a conductive adhesive. The tapes can be used to seal joints on enclosures and for ground termination between panels on shielded rooms.Bake AND Peel Conductive Foil Tape
Bake & Peel conductive foil tape provides an effective alternative to selective plating or chromate conversion on painted surfaces.The foil tape, which comes with a conductive adhesive backing, is fixed in place prior to painting. Once painting and baking are completed, the peel off mask can be removed to expose a conductive foil surface to which an EMC gasket can be fixed.
Temperature specification (baking) 1 hour at 200°C.
Detailed information
Examples / Notes
Notes:
Standard roll length is 25 metres for Bake & Peel versions and 50m for all plain foil tapes. Please contact us for preferred stock items.
Example:
TF-1025 is 25 mm wide Aluminium ‘Bake and Peel’ tape.
Standard roll length is 25 metres for Bake & Peel versions and 50m for all plain foil tapes. Please contact us for preferred stock items.
Example:
TF-1025 is 25 mm wide Aluminium ‘Bake and Peel’ tape.
How to order
Specify: Shielding Series-Part Number
| Shielding Series | Part Number |
| TF = Conductive Foil Tapes | 1013=13mm wide Aluminium ‘Bake and Peel’ Tape |
| 1025=25mm wide Aluminium ‘Bake and Peel’ Tape | |
| 2013=13mm wide Copper ‘Bake and Peel’ Tape | |
| 2025=25mm wide Copper ‘Bake and Peel’ Tape | |
| 4013=13mm wide Conductive Aluminium Foil Tape | |
| 4025=25mm wide Conductive Aluminium Foil Tape | |
| 4050=50mm wide Conductive Aluminium Foil Tape | |
| 5013=13 mm wide Conductive Copper Foil Tape | |
| 5025=25mm wide Conductive Copper Foil Tape | |
| 5050=50mm wide Conductive Copper Foil Tape |
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
