Our conductive fibre filled low density urethane sponge is available in a range of thicknesses from 1mm to 5mm.
STANDARD PRODUCTS

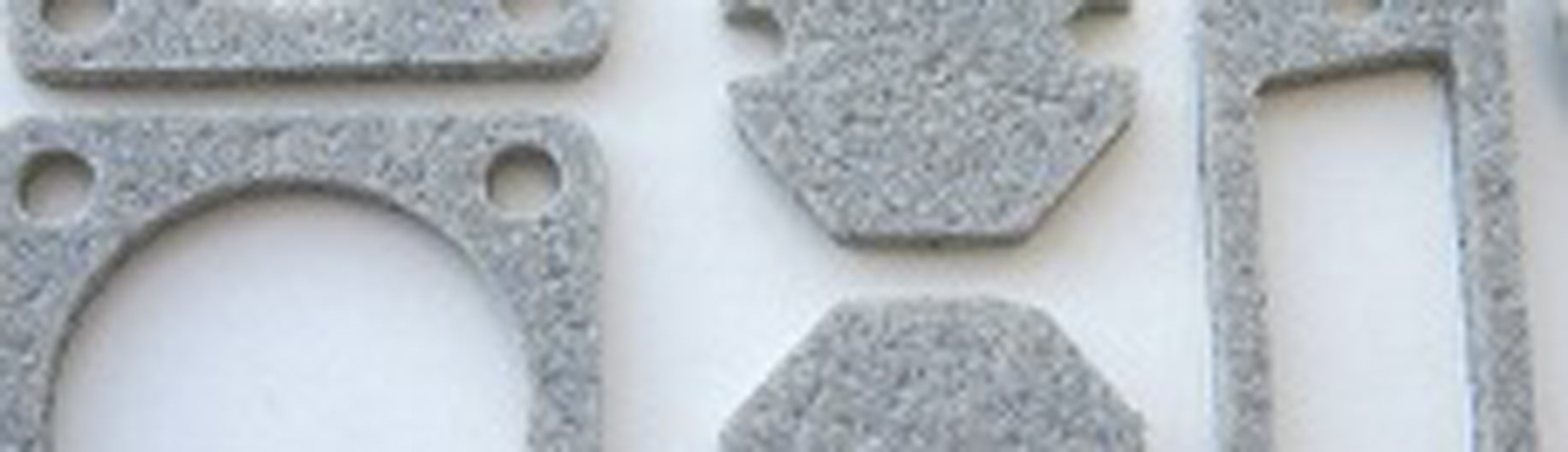

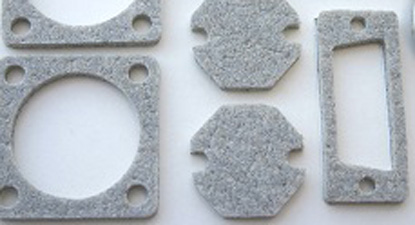

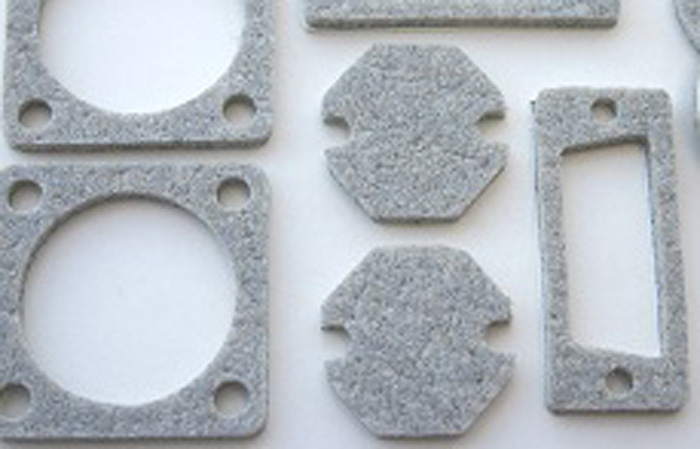

Conductive silver sponge
Our conductive fibre filled low density urethane sponge is available in a range of thicknesses from 1mm to 5mm and can be supplied with or without a conductive adhesive (silver copper particle filled) on one face.
The material is highly conductive in all planes (X, Y, & Z axis) with a typical through resistance of <0.03W. It can be easily die-cut and is ideal for emi shielded connector gaskets or where a gap needs to be filled without high compression.
The silver conductive sponge is UL94 V-0 rated and RoHS compliant.
Usage note – For optimal performance the sponge should be compressed by 5%.
The material is highly conductive in all planes (X, Y, & Z axis) with a typical through resistance of <0.03W. It can be easily die-cut and is ideal for emi shielded connector gaskets or where a gap needs to be filled without high compression.
The silver conductive sponge is UL94 V-0 rated and RoHS compliant.
Usage note – For optimal performance the sponge should be compressed by 5%.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
DETAILED INFORMATION
Performance
| 10MHz | 70 |
| 100MHz | >110 |
| 500MHz | >110 |
| 1GHz | >100 |
| 3GHz | 95 |
How to order
Specify: Shielding Series-Part Number/Thickness-Size/Drawing Number-Finish
| Shielding Series | Part Number | Size | Finish |
| MA = Conductive Silver Sponge | 1010 = 1mm thick | xxxx | S/A = Self Adhesive |
| 1015 = 1.5mm thick | N/A = No Adhesive | ||
| 1020 = 2mm thick | |||
| 1030 = 3mm thick |
Example / Notes
Notes:
Maximum material width 610mm.
Example:
MA-1040-4000-5000-S/A is conductive sponge 4mm thick 400 x 500 mm with self-adhesive.
Maximum material width 610mm.
Example:
MA-1040-4000-5000-S/A is conductive sponge 4mm thick 400 x 500 mm with self-adhesive.
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.

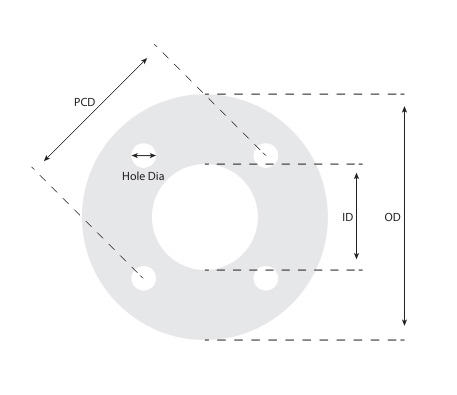

How to measure gaskets and o-rings
Gaskets can come in various shapes and sizes. We have put together a guide to help you measure some of the most common shaped gaskets correctly. Please follow the methods to help you successfully measure a gasket.
