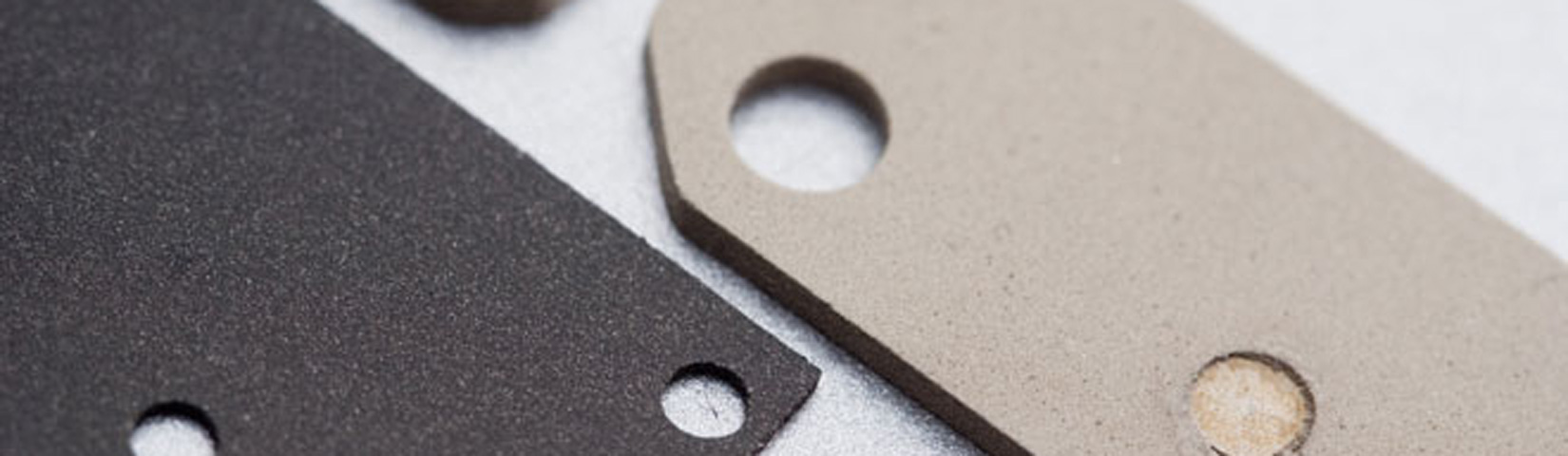

Conductive particle filled silicone produced in sheet form or as diecut flat gaskets.
STANDARD PRODUCTS

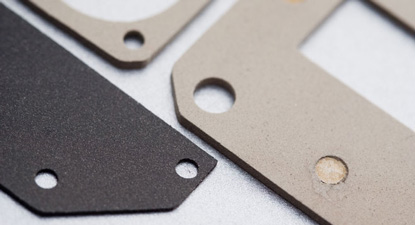

Conductive silicone die-cut gaskets
Conductive particle filled silicone produced in sheet form or as diecut flat gaskets.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
detailed information
How to order
Specify: Shielding Series-Filler code-Drawing Number or Size.
| Shielding Size | Filler Code | Drawing Number or Size |
| ES = Silicone | Q = Nickel Graphite | xxxxxxxxx-xxxxx |
| ESF = Flurosilicone | G = Silver Glass | |
| ESR = Flame Retardant Silicone* | J = Silver Aluminium | |
| H = Silver Copper | ||
| S = Silver | ||
| * Nickel Graphite only | C = Carbon |
Example / Notes
Note:
Please ensure a detailed drawing is supplied to enable a prompt and accurate quotation.
Example:
ES-J-0008-2500-3000 = ES Series Silver Aluminium 0.8mm x 250mm x 300mm.
Please ensure a detailed drawing is supplied to enable a prompt and accurate quotation.
Example:
ES-J-0008-2500-3000 = ES Series Silver Aluminium 0.8mm x 250mm x 300mm.
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
How to measure gaskets and o-rings
Gaskets can come in various shapes and sizes. We have put together a guide to help you measure some of the most common shaped gaskets correctly. Please follow the methods to help you successfully measure a gasket.
