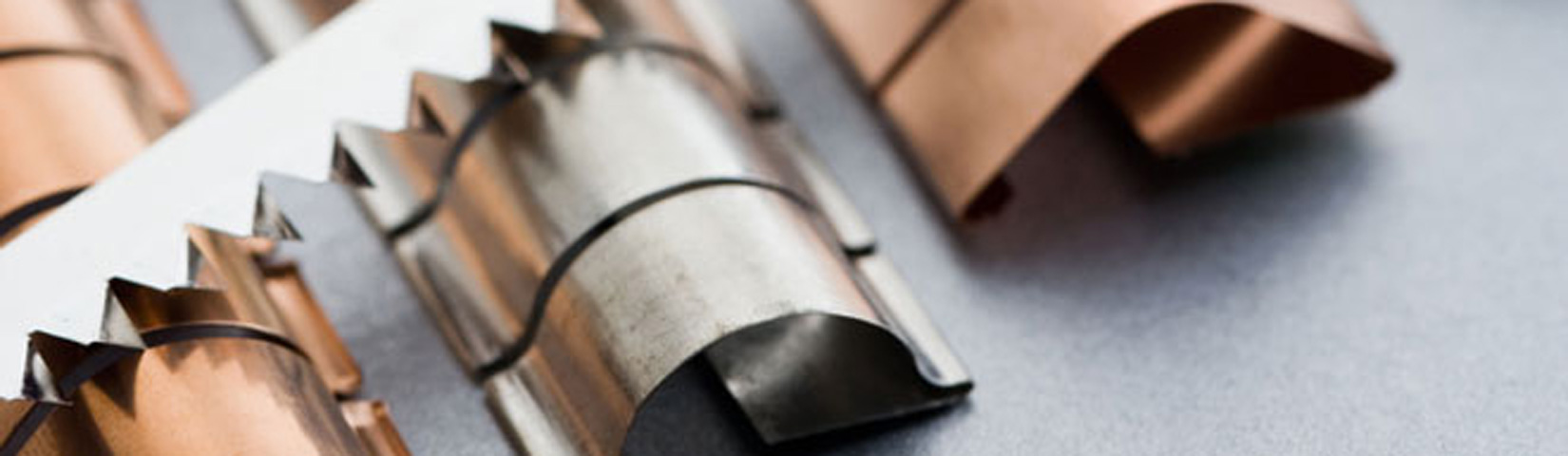

Our Conductive Finger Strips are available in a wide range of profiles, a choice of two materials and five finishes.
STANDARD PRODUCTS

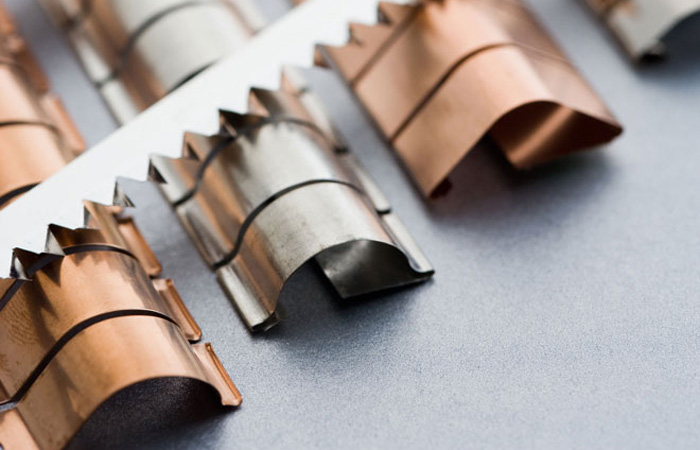

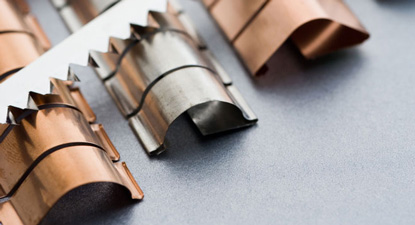

Conductive finger strips
Our Conductive Finger Strips are available in a wide range of profiles, a choice of two materials and five finishes. There is also a choice of either a conductive self-adhesive fixing or clip on.
They have a low closing force and do not take a compression set.
Conductive finger strips have long service life with good corrosion resistance & good shielding performance.
They have a low closing force and do not take a compression set.
Conductive finger strips have long service life with good corrosion resistance & good shielding performance.
Applications
Conductive finger strips are ideal for door gaskets where an environmental seal is not required and shielded room applications and can also be used as printed circuit board grounding contacts.
Each individual profile drawing details the available lengths and the material – stainless steel conductive finger strips are at the bottom of the page.
Each individual profile drawing details the available lengths and the material – stainless steel conductive finger strips are at the bottom of the page.
Find more information, such as our standard sizes etc, in our catalogue.
CATALOGUE
Detailed information
How to order
Specify: Series-Style Number-Length-Finish-Plating
| Shielding Series | Style Number | Length | Finish | Plating |
| CFS | See drawings | xxxx | S/A = Self Adhesive | Bd = Bight Finish |
| N/A = No Adhesive | Sn = Bright Tin | |||
| Ni = Bright Nickel | ||||
| Ag = Silver | ||||
| Au = Gold | ||||
| *plating not available on Stainless Steel |
Examples / Notes
Examples:
CFS-0645-406-S/A-Bd is Conductive finger strip, style 0645, 406mm long, beryllium copper with self-adhesive, bright finish.
CFS-0697-7.6m-S/A-Ni is Conductive finger strip, style 0697, 7.6 metres long, beryllium copper with self-adhesive, nickel plated.
CFS-0636SS-406-S/A is Conductive finger strip, style 0636, 406mm long, stainless steel with self-adhesive.
CFS-0645-406-S/A-Bd is Conductive finger strip, style 0645, 406mm long, beryllium copper with self-adhesive, bright finish.
CFS-0697-7.6m-S/A-Ni is Conductive finger strip, style 0697, 7.6 metres long, beryllium copper with self-adhesive, nickel plated.
CFS-0636SS-406-S/A is Conductive finger strip, style 0636, 406mm long, stainless steel with self-adhesive.
Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
