Knitted wire meshes are produced from a single continuous filament and produce very high levels of EMI shielding performance when evenly compressed between two metallic contact surfaces.
STANDARD PRODUCTS

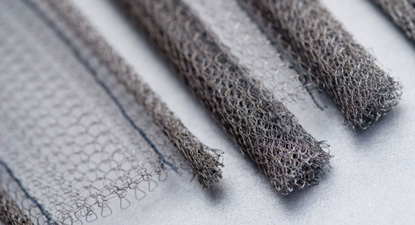

Knitted wire mesh
Knitted wire meshes are produced from a single continuous filament and produce very high levels of EMI shielding performance when evenly compressed between two metallic contact surfaces.
Our knitted wire EMI shielding meshes are available in four basic wire types – Monel, Aluminium, TCS (Tinned Copper-clad Steel) and Stainless Steel. Each has it’s own specific characteristics but TCS is generally regarded as the most suitable for EMP (low frequency) shielding.
Our knitted wire EMI shielding meshes are available in four basic wire types – Monel, Aluminium, TCS (Tinned Copper-clad Steel) and Stainless Steel. Each has it’s own specific characteristics but TCS is generally regarded as the most suitable for EMP (low frequency) shielding.
Applications
Because knitted wire mesh is not as resilient as an elastomer cored knitted mesh, and will eventually take a compression-set, they are generally used where the panel mating surfaces are permanent or fixed.
KP knitted meshes provide only limited environmental sealing so are normally used for applications that are not exposed to the elements unless they are protected by a further external elastomeric seal (see knitted wire mesh with environmental seal). They do, however, have a long service life and a high temperature tolerance.
For optimum effectiveness knitted mesh gaskets should be compressed by 20 – 25% of their relaxed height. If surface irregularities prevent this an elastomer cored knitted mesh would be more suitable.
Gaskets can either be retained in a groove or channel or fixed with adhesive (the wire contact points can penetrate a thin film), welding or soldering. To facilitate clamping or riveting, ’round-with-tail’ and ‘double-round-with-tail’ sections are available.
KP knitted meshes provide only limited environmental sealing so are normally used for applications that are not exposed to the elements unless they are protected by a further external elastomeric seal (see knitted wire mesh with environmental seal). They do, however, have a long service life and a high temperature tolerance.
For optimum effectiveness knitted mesh gaskets should be compressed by 20 – 25% of their relaxed height. If surface irregularities prevent this an elastomer cored knitted mesh would be more suitable.
Gaskets can either be retained in a groove or channel or fixed with adhesive (the wire contact points can penetrate a thin film), welding or soldering. To facilitate clamping or riveting, ’round-with-tail’ and ‘double-round-with-tail’ sections are available.
Find more information, such as our standard sizes etc, in our catalogue.
Catalogue
Detailed information
Specifications
| Monel | BS3075 - NA13 | (0.11mm diameter) |
| Aluminium 5056 | AMS 4182 | (0.13mm diameter) |
| TCS | ASTM B520 | (0.11mm diameter) |
| Stainless Steel | Alloy 304 | (0.11mm diameter) |
Performance
| Frequency | Field | Monel | Aluminium | TCS | S/Steel |
| 10KHz | H | 45 | 40 | 60 | 40 |
| 100khZ | H | 49 | 45 | 65 | 44 |
| 1MHz | H | 60 | 60 | 85 | 58 |
| 1MHz | E | 125 | 125 | 125 | 125 |
| 10MHz | E | 120 | 120 | 120 | 120 |
| 100MHz | E | 100 | 100 | 108 | 100 |
| 400MHz | P | 98 | 95 | 99 | 94 |
| 1GHz | P | 85 | 76 | 78 | 76 |
| 10GHz | P | 80 | 65 | 62 | 60 |
Tolerances
+0.8mm / -0.0mm
How to order
Standard sizes can be specified from the table below. Alternatively, specify: Series-Wire Code-Style-Size/Dimensions
| Shielding Series | Wire Code | Style | Size |
| KP | M = Monel | 10 = Round | xxxx-xxxx |
| A = Aluminium | 20 = Rectangular | ||
| T = TCS | 30 = Round with tail | ||
| S = Stainless Steel | 40 = Double round with tail |
Examples / Notes
Examples:
KP-M-10-0024 is Monel wire 2.4 mm diameter round
KP-A-20-0095-0127 is aluminium wire 9.5 x 12.7 mm rectangular
KP-M-10-0024 is Monel wire 2.4 mm diameter round
KP-A-20-0095-0127 is aluminium wire 9.5 x 12.7 mm rectangular
Our standard sizes
Please note
- Knitted meshes are available in continuous lengths, cut pieces or as fabricated gaskets
- Compresed mesh gasket forms and o-rings can be produced to customers specifications
- Other sizes are available– please ask!
For details of fixing methods or any technical queries please contact our sales office
