STANDARD PRODUCTS
EMI shielded cable glands

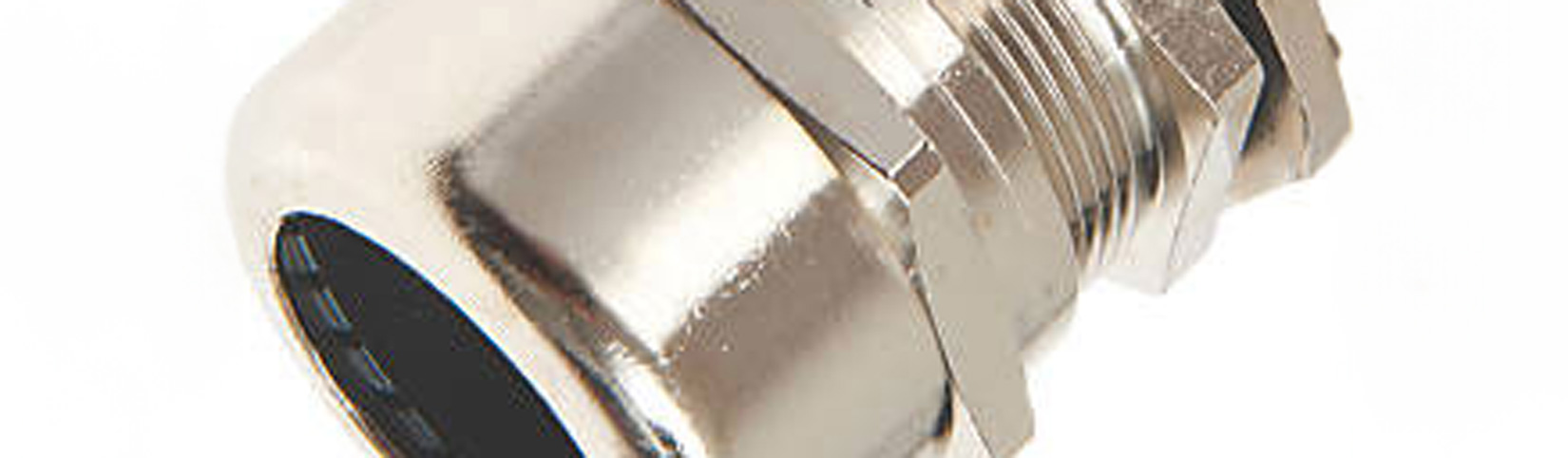

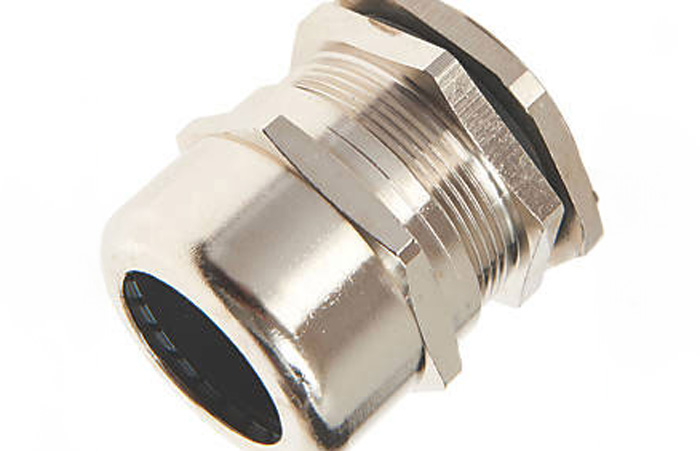

Nolato PPT’s EMI cable glands are available in either brass or stainless steel.
Their construction is made up of 4 parts. The main body, the knitted mesh olive, the cap and the locknut.
The cable gland works like any normal cable gland. However, the primary difference is that we use a knitted wire mesh olive.
Once the cap is tightened the body compressed the olive around the cable, thus providing a high level of electrical conductivity between the cable and the gland body.
Their construction is made up of 4 parts. The main body, the knitted mesh olive, the cap and the locknut.
The cable gland works like any normal cable gland. However, the primary difference is that we use a knitted wire mesh olive.
Once the cap is tightened the body compressed the olive around the cable, thus providing a high level of electrical conductivity between the cable and the gland body.
Applications
Nolato PPT’s EMI Shielded Cable Gland providea high level of RFI/EMI shielding for screened cables passing through enclosure walls.
Detailed information
Specifications
Colour – Grey
IPRating – IP68
Resistance Type – Corrosive Resistant
Suitable Cable Shape – Round
Suitable Cable Size – 5 – 10mm²
Suitable Hole Size – M16
IPRating – IP68
Resistance Type – Corrosive Resistant
Suitable Cable Shape – Round
Suitable Cable Size – 5 – 10mm²
Suitable Hole Size – M16
Performance
Typical Attenuation dB
| Frequency | Field | |
| 10KHz | H | 72 |
| 100KHz | H | 85 |
| 100KHz | E | 132> |
| 1MHz | H | 91 |
| 1MHz | E | 129> |
| 10MHz | E | 119> |
| 100MHz | E | 119> |
