STANDARD PRODUCTS

Conductive foil tapes

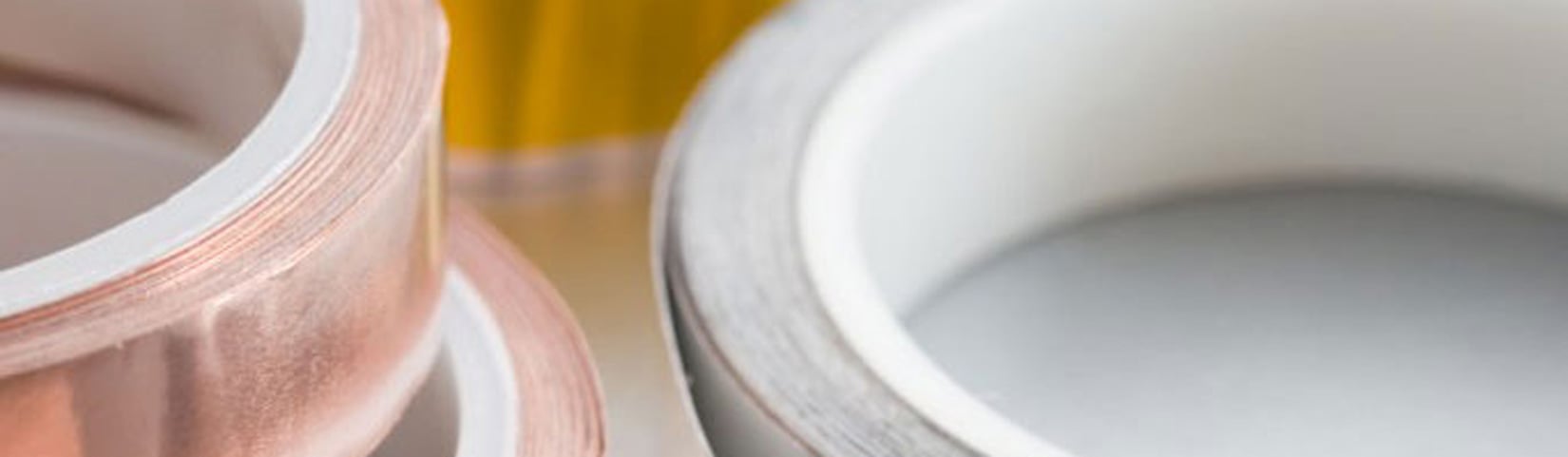

Our range of conductive foil tape offers a cost-effective solution to EMI shielding. Tapes are available in both copper and aluminium with a conductive adhesive.

Conductive Foil Tapes

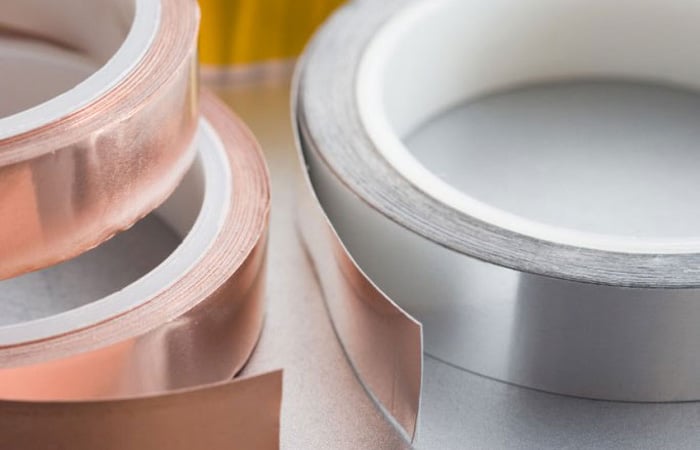

Our range of conductive foil tape offers a cost-effective solution to EMI shielding. Tapes are available in both copper and aluminium with a conductive adhesive. The tapes can be used to seal joints on enclosures and for ground termination between panels on shielded rooms.

Bake AND Peel Conductive Foil Tape

Bake & Peel conductive foil tape provides an effective alternative to selective plating or chromate conversion on painted surfaces.

The foil tape, which comes with a conductive adhesive backing, is fixed in place prior to painting. Once painting and baking are completed, the peel off mask can be removed to expose a conductive foil surface to which an EMC gasket can be fixed.

Temperature specification (baking) 1 hour at 200°C.
Conductive foil tapes products
Detailed information

Examples / Notes

Notes:
Standard roll length is 25 meters for Bake & Peel versions and 50m for all plain foil tapes. Please contact us for preferred stock items.

Example:
TF-1025 is 25 mm wide Aluminium ‘Bake and Peel’ tape.

How to order

Specify: Shielding Series-Part Number

 Shielding Series Part Number
 TF = Conductive Foil Tapes 1013=13mm wide Aluminium ‘Bake and Peel’ Tape
  1025=25mm wide Aluminium ‘Bake and Peel’ Tape
  2013=13mm wide Copper ‘Bake and Peel’ Tape
  2025=25mm wide Copper ‘Bake and Peel’ Tape
  4013=13mm wide Conductive Aluminium Foil Tape
  4025=25mm wide Conductive Aluminium Foil Tape
  4050=50mm wide Conductive Aluminium Foil Tape
  5013=13 mm wide Conductive Copper Foil Tape
  5025=25mm wide Conductive Copper Foil Tape
  5050=50mm wide Conductive Copper Foil Tape

Can't see what you're looking for?
Many of our clients require bespoke made products. If you'd like to discuss a product, please do give us a call and speak to us about your requirements.
