Oriented wires in silicone range

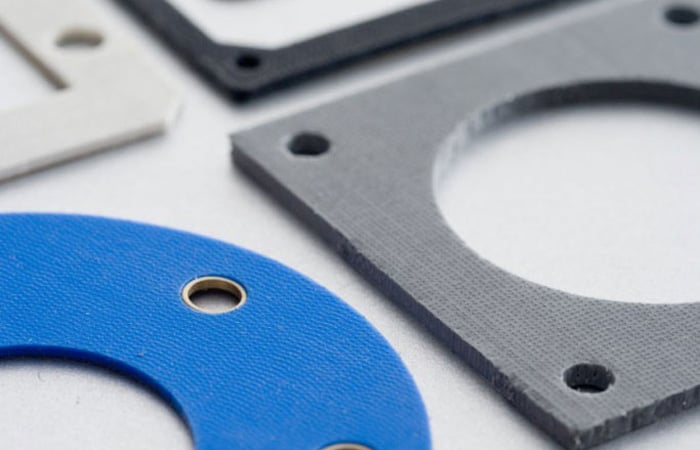

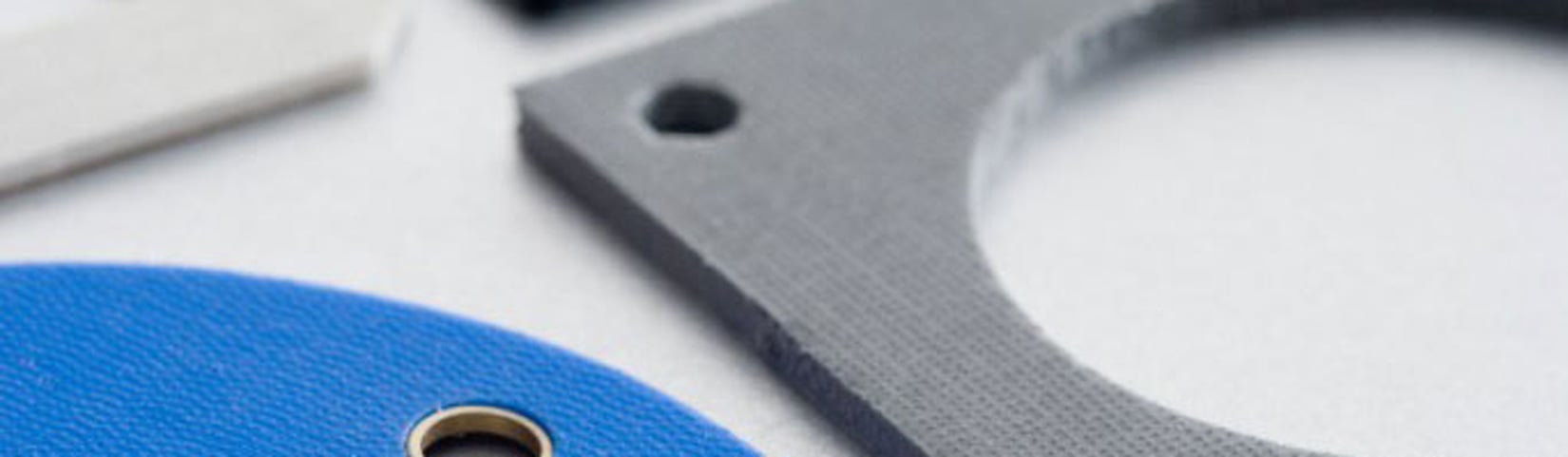

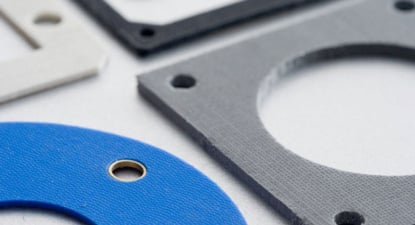

Our range of oriented wire in silicone rubbers combine excellent environmental protection with a high level of shielding effectiveness.

Our range of oriented wire in silicone rubbers combine excellent environmental protection with a high level of shielding effectiveness. These products incorporate a matrix of vertically oriented wires which pierce both flat faces of the elastomer and provide around 100 contact points per square centimeter.

The materials, which include solid silicone and sponge silicone variants as well as Fluorosilicone, sponge silicone flame retardant, solid silicone flame retardant and solid silicone with either a fluorsosilicone edge or wire free edge options, are produced in sheet or strip form and are usually factory fabricated and die-cut into gasket profiles to customers specifications.

Wire-free widths can be ordered where the material cross-section has wires along just one edge, or along both edges with no wires in the center. This provides a pressure seal and EMI shield in one component but reduces the compressive force needed to fit the gasket.

Dual material variants can also provide the advantages of a fluorosilicone gasket with the cost-effectiveness of plain silicone. This is achieved by bonding a wire-free fluorosilicone edge to a standard sheet or strip during the molding process. Fabricated gaskets have a wire-free, contaminant resistant outer edge suitable for applications where loose wires could cause problems when gaskets are subjected to solvents or hydrocarbons and are liable to soften & swell.

Please contact us to discuss your precise requirements.
Oriented wires in silicone products

Applications

Oriented wires in silicone is probably the most versatile of EMI shielding gasket materials. All variants provide good environmental protection and are regularly used where long service life, high performance fixed gaskets are needed. Because of the harder nature of the material, and because it needs a strong closing force through a relatively rigid cover which is screw fixed at regular intervals, they are not generally suitable for doorseals or other applications where a regular opening and closing application applies. The possible exception to this is the sponge silicone variant.

Oriented wires in silicone material is usually supplied in gasket, strip or sheet form with a pressure sensitive adhesive backing which holds the gasket in the absence of a groove or channel. If a groove is available the gasket form is often a jointed ‘o’ ring without the adhesive backing.

Because oriented wire elastomers are wider than they are high, when specifying the thickness should be stated first as this will be the length of the embedded wires. Then, if the height needs to be greater than the width (i.e. to fit into a groove), there will be no doubt about your actual needs.

Particular care needs to be taken over the design of gaskets to ensure that fixing covers or doors do not distort during compression. It is often necessary to incorporate ‘limit stops’ into the gaskets to prevent over-compression. The material should be compressed by approximately 15% of its relaxed height. Please contact us for technical advice.
Oriented wires in silicone products
Find more information, such as our standard sizes etc, in our catalogue.

CATALOGUE

Detailed Information

Specifications

Solid Silicone Rubber  ZZ-R-765 2b 40
Sponge Silicone Rubber AMS 3195
Fluorosilicone Rubber Mil-R-25988 Gr 50
Monel Wire BS3075 - NA13 (0.11mm diameter)
Aluminium 5056 AMS 4182 (0.13mm diameter)
Phosphor Bronze Cu Sn 6% (0.114mm diameter)

Temperature range

-55 to 250oC

Performance

Frequency  Field TypeSP
10KHz G 55
100KHz H 83
1MHz H >100
1MHz E >120
10MHz E >120
100MHz E >120
400MHz E >100
1GHz P 95
10GHz P 85

Tolerances

- Thickness up to 1.0mm +0.25mm –0.15mm

- Thickness over 1.0mm ± 0.25mm

- Width tolerance on sheet material ±1.0mm

How to order

Please specify: Shielding Series-Wire Type-Thickness-Width-Adhesive Option


Shielding Series  Wire Code Tickness/Width Finish
SP = Solid Silicone M = Monel xxxx-xxxx S/A = Self adhesive
SS = Sponge Silicone A = Aluminium   N/A = No adhesive
SR = Flame Retardant Solid Silicone P = Phosphor Bronze
SG = Flame Retardant Sponge Silicone
SF = Solid Flurosilicone
SE = Wire Free Edge / Flurosilicone Edge

Examples / Notes

SP-M-0016-0127-S/A is Solid Silicone with Monel wire 1.6 mm thick x 12.7 mm wide with self-adhesive.
SS-A-0032-1140-N/A is Sponge Silicone with Aluminium wire 3.2 mm thick x 114 mm wide no adhesive.
For strip material not shown, or specific shapes, made up gaskets and for fixing hole positions, please send a drawing and we will allocate a part number with our quotation.

Example sizes

Thickness mm Width mm Part number suffix Thickness mm Width mm Part number suffix
0.8 76 -0008-0760 1.4 3.2 -0016-0032
0.8  114 -0008-1140 1.6 4.8 -0016-0048
0.8  152  -0008-1520 1.6 6.4 -0016-0064
0.8  228 -0008-2280 1.6 9.5 -0016-0095
1.1  76 -0011-0760 1.6 12.7 -0016-0127
1.1 114  -0011-1140  1.6  15.9 -0016-0159
1.1 152  -0011-1520 2.4  3.2 -0024-0032
1.1 228 -0011-2280 2.4 4.8 -0024-0048
1.3  76  -0013-0760 2.4 6.4 -0024-0064
1.3  114  -0013-1140 2.4  9.5 -0024-0095
1.3  152  -0013-1520 2.4  12.7 -0024-0127
1.3  228  -0013-2280 2.4  15.9  -0024-0159
1.6  76  -0016-0760 3.2  3.2 -0032-0032
1.6  114  -0016-1140 3.2  4.8 -0032-0048
1.6  152  -0016-1520 3.2  6.4 -0032-0064
1.6  228 -0016-2280 3.2  9.5 -0032-0095
2.4  76  -0024-0760 3.2  12.7 -0032-0127
2.4  114 -0024-1140 3.1  15.9 -0032-0159
2.4  152 -0024-1520 4.8  4.8 -0048-0048
2.4  228 -0024-2280 4.8  6.4 -0048-0064
3.2  76 -0032-0760 4.8  9.5 -0048-0095
3.2  114 -0032-1140 4.8  12.7 -0048-0127
3.2  152 -0032-1520 4.8  15.9 -0048-0159
3.2  228 -0032-2280 6.4  6.4 -0064-0064
4.8  76 -0048-0760 6.4  9.5 -0064-0095
4.8  114 -0048-1140 6.4  12.7 -0064-0127
4.8  152  -0048-1520 6.4  15.9 -0064-0159
4.8  228 -0048-2280 6.4  19.1 -0064-0191
6.4  76 -0064-0760 6.4  25.4 -0064-0254
6.4  114 -0064-1140 8.0  8.0 -0080-0080
6.4  152 -0064-1520 8.0  9.5 -0080-0095
6.4 228 -0064-2280 8.0  12.7 -0080-0127
8.0  76 -0080-0760 8.0  15.9 -0080-0159
8.0  114 -0080-1140 8.0  19.1 -0080-0191
8.0 152 -0080-1520 8.0  25.4 -0080-0254
8.0  228 -0080-2280 12.7  12.7 -0127-0127
9.5  76 -0095-0760 12.7  15.9 -0124-0159
9.5  114 -0095-1140 12.7  19.1 -0127-0191
9.5  152 -0095-1520 12.7  25.4 -0124-0254
9.5  228  -0065-2280 15.9  15.9 -0159-0159

Please note

- Strip material is available in 915mm nominal lengths and can be factory bonded into longer sections.

- Sheet material is generally 152mm or 228mm nominal widths.

- Minimum thickness 0.8mm depending on material variant – please check before ordering.
